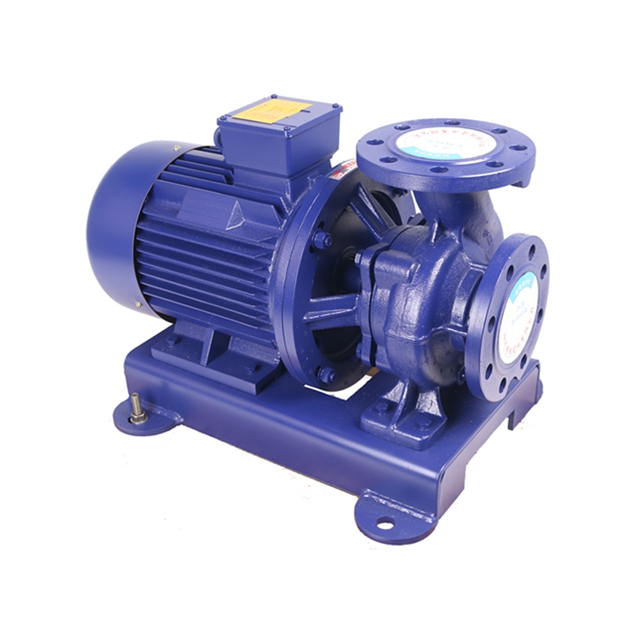

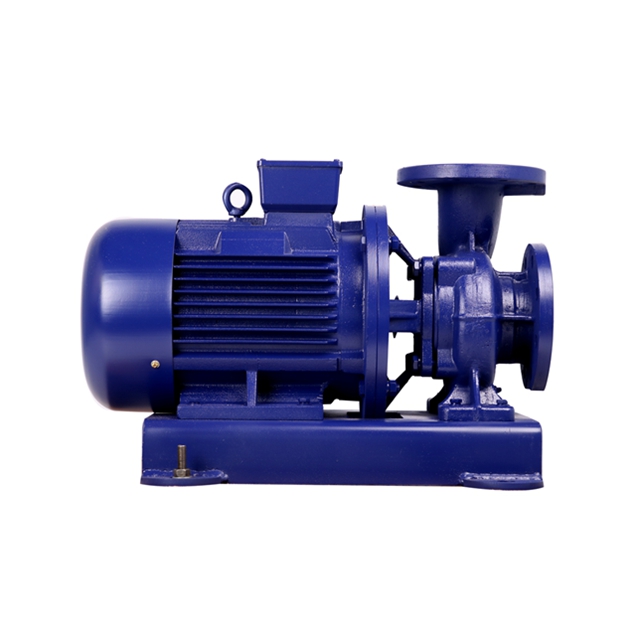

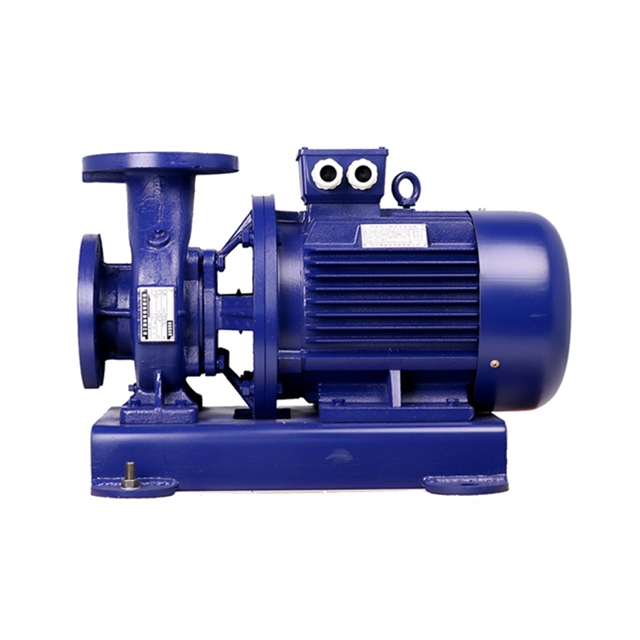

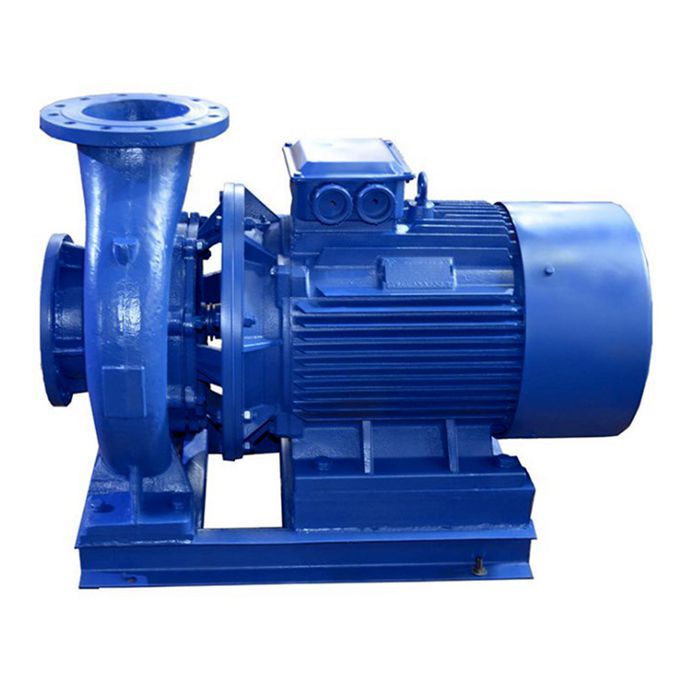

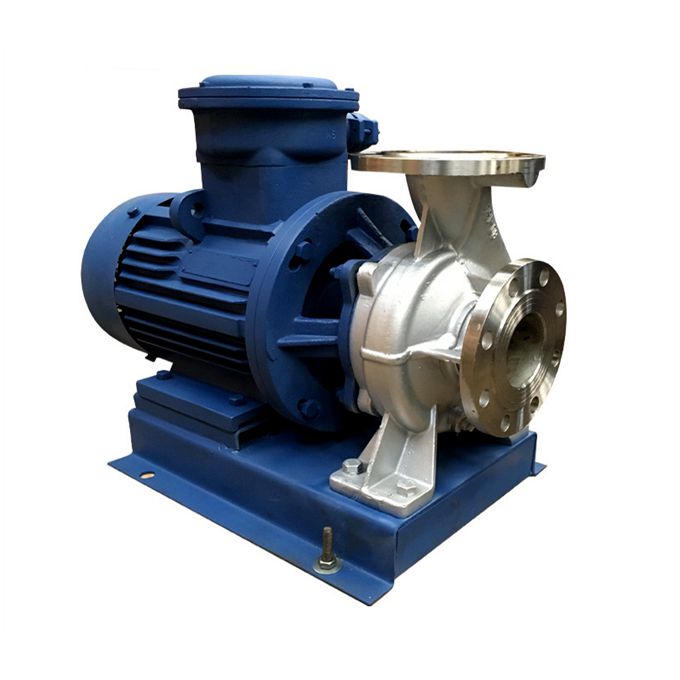

ISW Series Close-coupled Single Stage Horizontal Centrifugal Water Pump
ISW series single stage end suction horizontal inline centrifugal pump is the second generation of high efficiency energy saving product designed by our company based on many years production experience as per the performance parameters stated in the international standard ISO2858.It can be designed and manufactured into IRG hot water pump and IHW pipeline chemical pump.
ISW Series Close-coupled Single Stage Horizontal Centrifugal Water Pump
Flow Range:4.5-1600m3/h
Head Range:5-125m
Inlet&outlet:DN32-500
Application
*Industrial and urban water supply and drainage,
*Pressurized water supply in high-rise building,
*Garden sprinkler,irrigation,
*Fire pressurization,booster
*Hot water circulation pressurization hvac refrigeration cycle, bathroom,
*All kinds of water supply equipment, auxiliary boiler\
| Model | Flow(m3/h) | Head(m) | Speed(r/min) | Power(kw) |
| ISW50-100 | 12.5 | 12.5 | 2900 | 1.1 |
| ISW50-125 | 12.5 | 20 | 2900 | 1.5 |
| ISW50-160 | 12.5 | 32 | 2900 | 3 |
| ISW50-200 | 12.5 | 50 | 2900 | 5.5 |
| ISW50-250 | 12.5 | 80 | 2900 | 11 |
| ISW65-100 | 25 | 12.5 | 2900 | 1.5 |
| ISW65-125 | 25 | 20 | 2900 | 3 |
| ISW65-160 | 25 | 32 | 2900 | 4 |
| ISW65-200 | 25 | 50 | 2900 | 7.5 |
| ISW65-250 | 25 | 80 | 2900 | 15 |
| ISW65-315 | 25 | 125 | 2900 | 30 |
| ISW80-100 | 50 | 12.5 | 2900 | 3 |
| ISW80-125 | 50 | 20 | 2900 | 5.5 |
| ISW80-160 | 50 | 32 | 2900 | 7.5 |
| ISW80-200 | 50 | 50 | 2900 | 15 |
| ISW80-250 | 50 | 80 | 2900 | 22 |
| ISW80-315 | 50 | 125 | 2900 | 37 |
| ISW80-350 | 50 | 150 | 2900 | 55 |
| ISW100-100 | 100 | 12.5 | 2900 | 5.5 |
| ISW100-125 | 100 | 20 | 2900 | 11 |
| ISW100-160 | 100 | 32 | 2900 | 15 |
| ISW100-200 | 100 | 50 | 2900 | 22 |
| ISW100-250 | 100 | 80 | 2900 | 37 |
| ISW100-315 | 100 | 125 | 2900 | 75 |
| ISW100-350 | 100 | 150 | 2900 | 90 |
| ISW125-100 | 160 | 12.5 | 2900 | 11 |
| ISW125-125 | 160 | 20 | 2900 | 15 |
| ISW125-160 | 160 | 32 | 2900 | 22 |
| ISW125-200 | 160 | 50 | 2900 | 37 |
| ISW125-250 | 160 | 80 | 2900 | 55 |
| ISW125-315 | 160 | 125 | 2900 | 90 |
| ISW150-125 | 160 | 24 | 2900 | 11 |
| ISW150-160 | 160 | 32 | 2900 | 22 |
