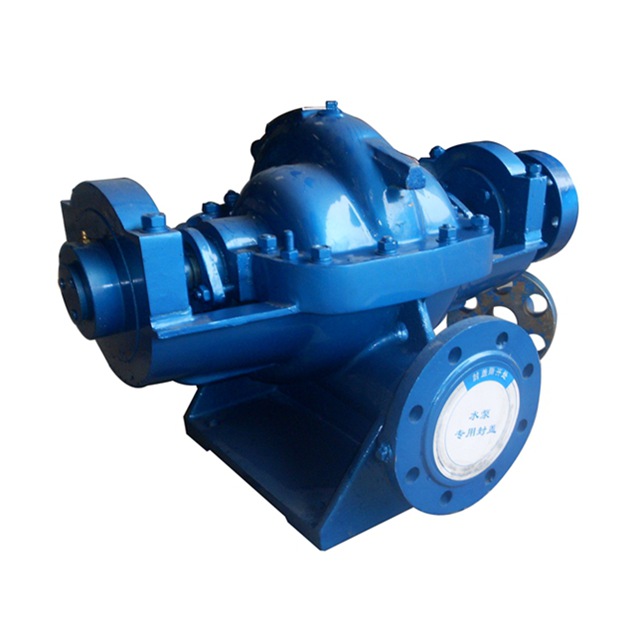

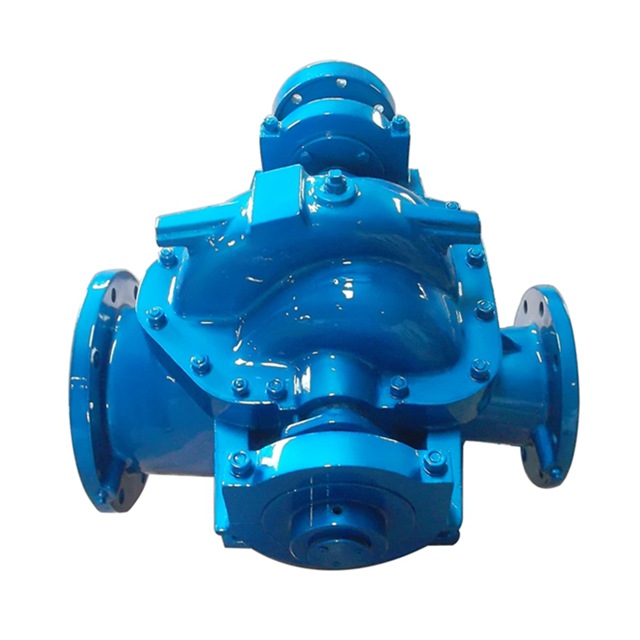

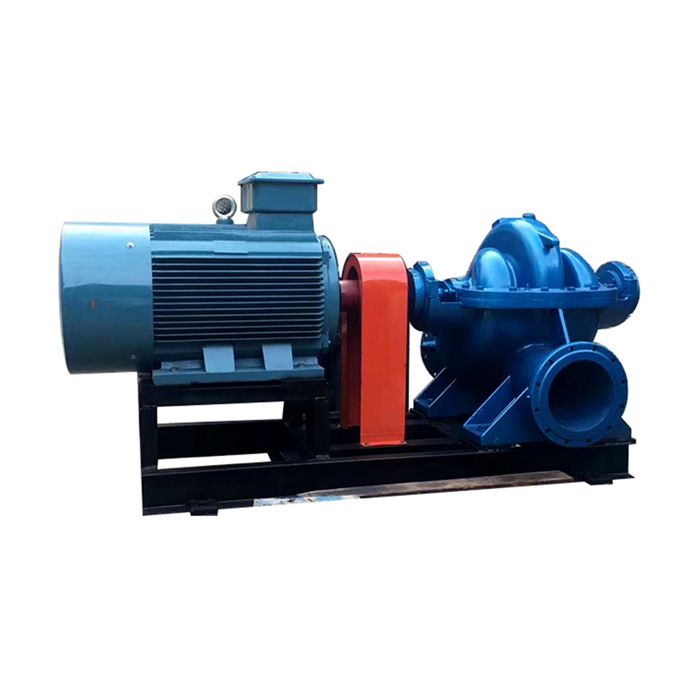

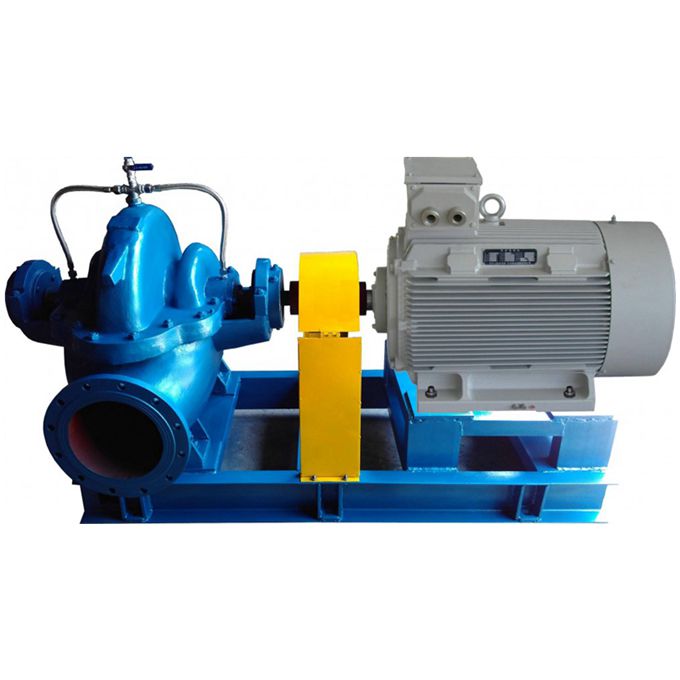

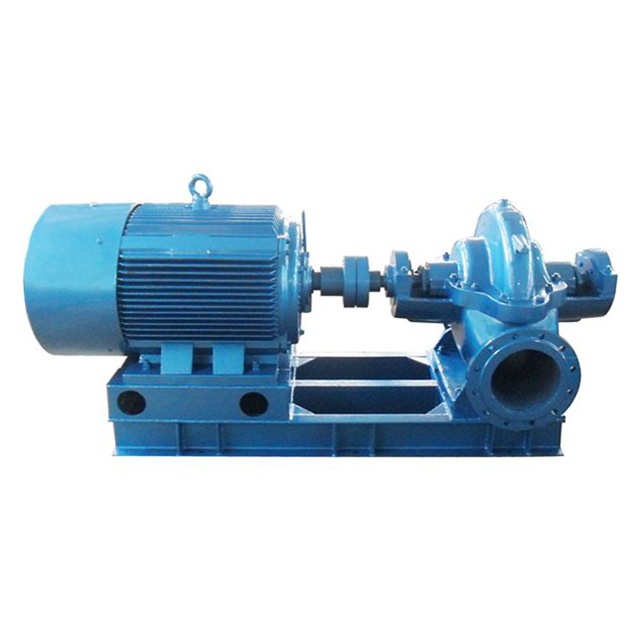

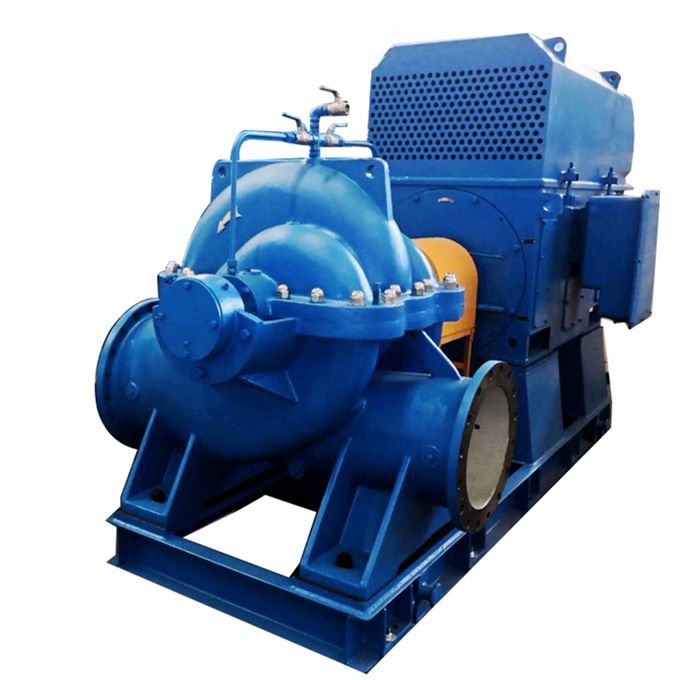

S Series Single Stage Double Suction Horizontal Centrifugal Water Pump
S series horizontal split casing pump is single-stage, double suction centrifugal pumps, which are suitable for factories, cities, mines, power plants, agricultural, water conservancy and other fields is used for conveying water free of solid particles or physical and chemical properties similar to water and other liquids.
S Series Single Stage Double Suction Horizontal Centrifugal Water Pump

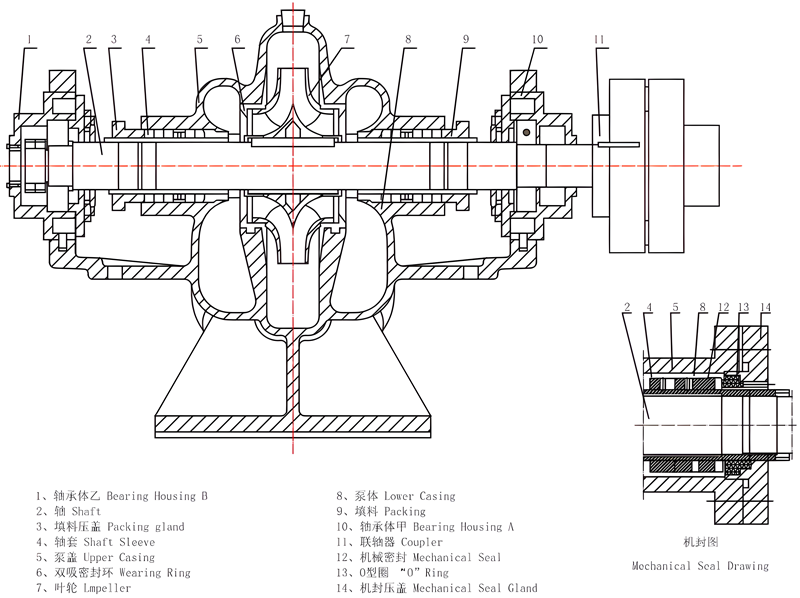

Main pump parts:pump body,pump cover,impeller,shaft,seal ring etc.
Performance:
Flow:max 4400m3/h
Head:max 135m
Inlet&outlet:DN100-800mm
Working pressure:2.5Mpa
Application:
S split case double suction pump is suitable for transferring
various liquids,such as clean liquids or neutral
liquids with small particles or weak-erosion
liquids.The product is applicable to water supply plant,agricultural
irrigation,power station,drainage in pump
station,water supply system in industrial field,
air-conditioning system,fire-fighting system and so on
| Model | Flow(m3/h) | Head(m) | Speed(rmin) | Power(kw) | Inlet/Outlet | |
| 100S90 | 80 | 90 | 2950 | 37 | DN100/80 | |
| 150S100 | 160 | 100 | 2950 | 75 | DN150/100 | |
| 150S78 | 160 | 78 | 2950 | 55 | DN150/100 | |
| 150S50 | 160 | 50 | 2950 | 37 | DN150/100 | |
| 200S95 | 280 | 95 | 2950 | 132 | DN200/125 | |
| 200S63 | 280 | 63 | 2950 | 75 | DN200/150 | |
| 200S42 | 280 | 42 | 2950 | 45 | DN200/150 | |
| 250S65 | 485 | 65 | 1450 | 160 | DN250/150 | |
| 250S39 | 485 | 39 | 1450 | 75 | DN250/200 | |
| 250S24 | 485 | 24 | 1450 | 45 | DN250/200 | |
| 250S14 | 485 | 14 | 1450 | 30 | DN250/200 | |
| 300S90 | 790 | 90 | 1450 | 315 | DN300/200 | |
| 300S58 | 790 | 58 | 1450 | 200 | DN300/250 | |
| 300S32 | 790 | 32 | 1450 | 90 | DN300/250 | |
| 300S19 | 790 | 19 | 1450 | 55 | DN300/250 | |
| 300S12 | 790 | 12 | 1450 | 37 | DN300/300 | |
| 350S125 | 1260 | 125 | 1450 | 710 | DN350/200 | |
| 350S75 | 1264 | 75 | 1450 | 355 | DN350/250 | |
| 350S44 | 1260 | 44 | 1450 | 220 | DN350/300 | |
| 350S26 | 1260 | 26 | 1450 | 132 | DN350/300 | |
| 350S16 | 1260 | 16 | 1450 | 75 | DN350/350 | |
| 500S98 | 2020 | 98 | 970 | 800 | DN500/300 | |
| 500S59 | 2020 | 59 | 970 | 450 | DN500/350 | |
| 500S35 | 2020 | 35 | 970 | 280 | DN500/350 | |
| 500S22 | 2020 | 22 | 970 | 185 | DN500/400 | |
| 500S13 | 2020 | 13 | 970 | 110 | DN500/500 | |
| 600S22 | 3170 | 22 | 970 | 250 | DN600/500 | |
| 600S32 | 3170 | 32 | 970 | 355 | DN600/500 | |
| 600S47 | 3170 | 47 | 970 | 560 | DN600/400 | |
| 600S75 | 3170 | 75 | 970 | 900 | DN600/400 | |
| 600S100 | 3170 | 100 | 970 | 1400 | DN600/400 | |
