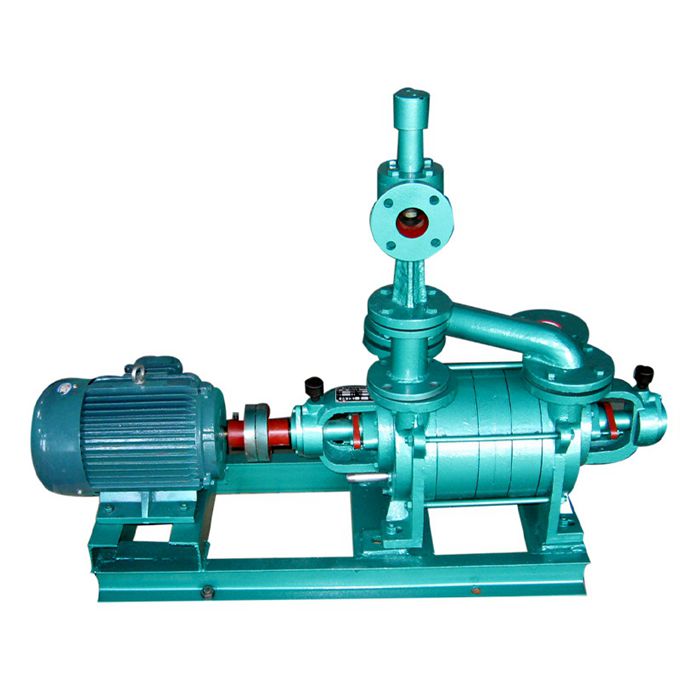

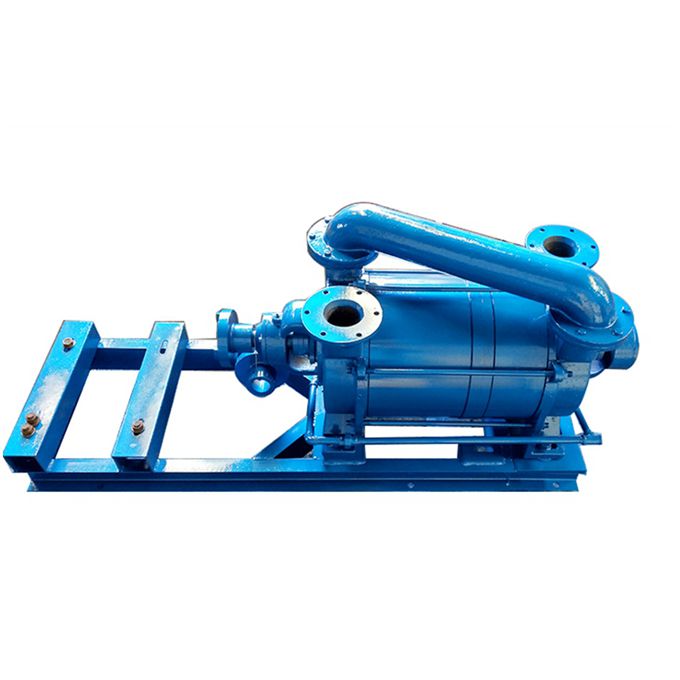

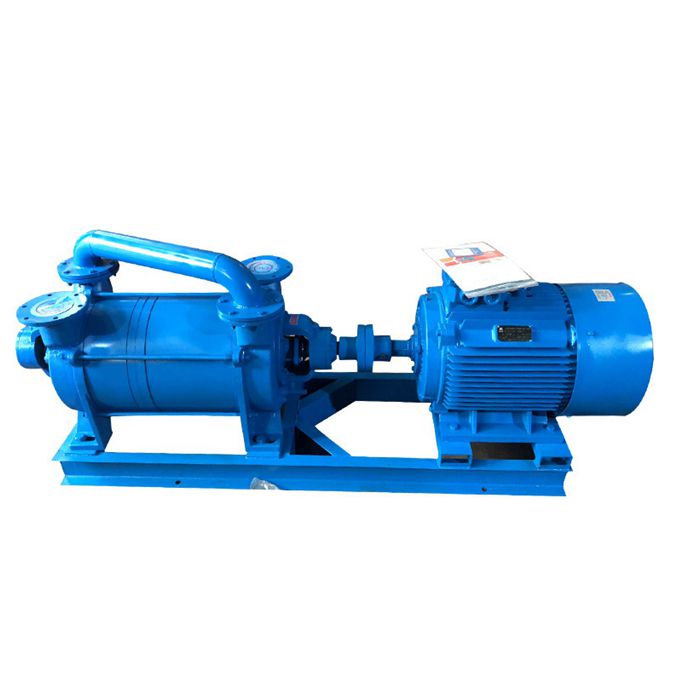

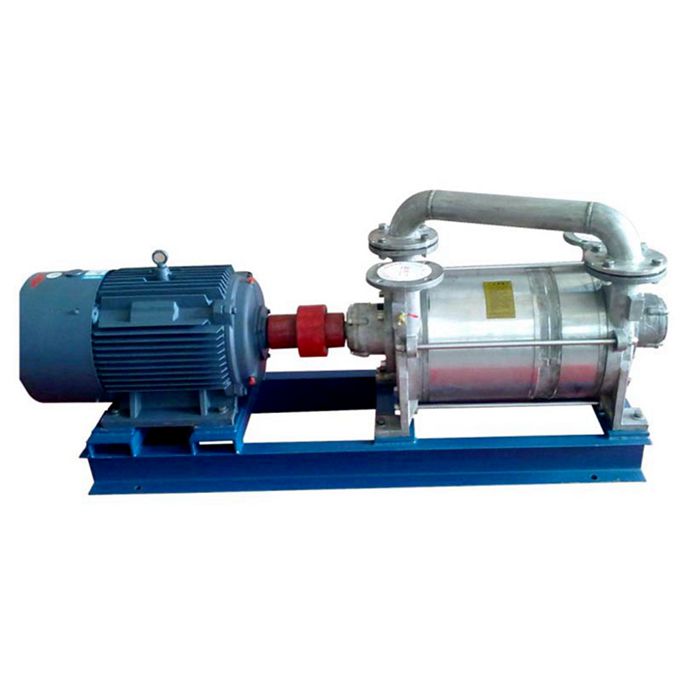

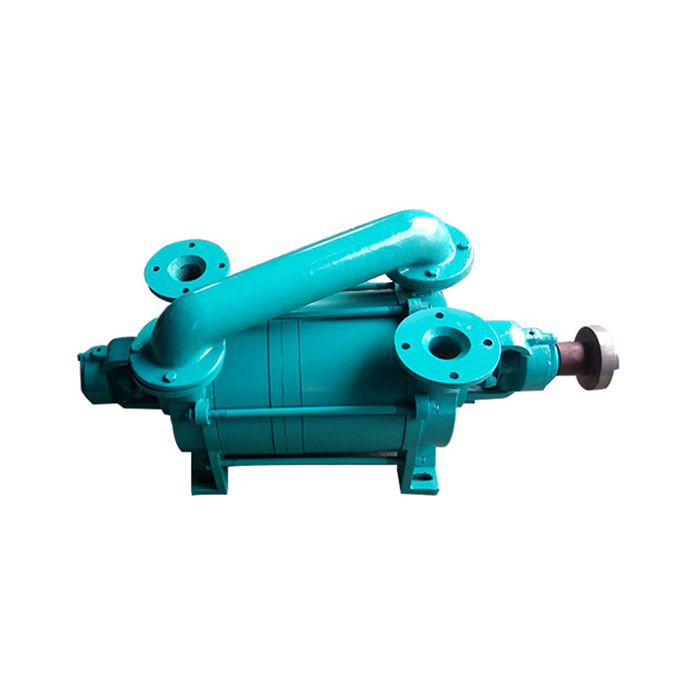

2SK Series Double Stage Water Ring Vacuum Pump

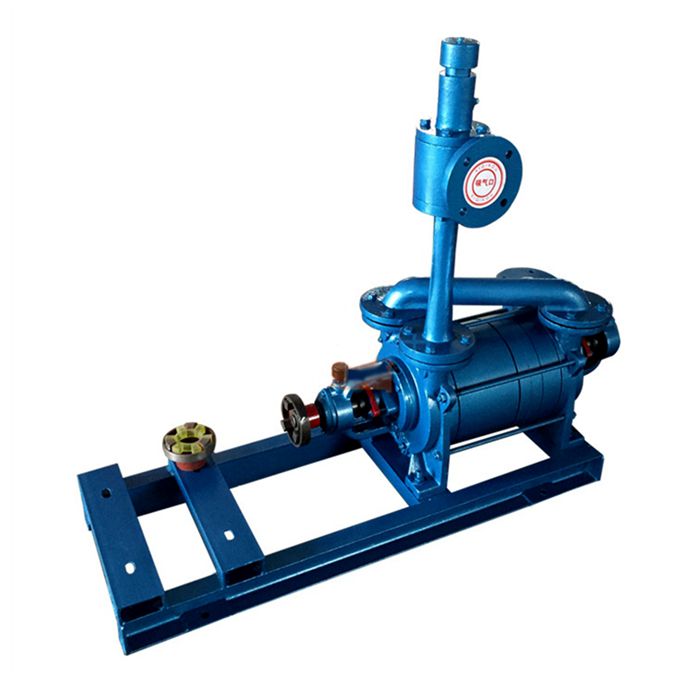

2SK series two stage water ring vacuum pump and 2SK-P1 series two stage water ring vacuum pump with ejetor.It is used for air suction or high vacuum in closed container.
2SK Series Double Stage Water Ring Vacuum Pump
Widely used for foods,textile,chemical,medital,metallurgy and electric zone for vacuum evaportation,vacuum concentration,
vacuum resurgence,vacuum impregnation,vacuum drying and vacuum metling.
2SK series vacuum pump used for working condition with suction presure lower than -0.08Mpa.2SK-P1 series used for suction
pressure lower than -0.096Mpa.
| Model | Max air | Ultimate | Power | Speed | Water | Inlet&Outlet |
| No. | Consumption(m3/min) | Vacuum(MPaG) | KW | r/min | Supply(L/min) | Dia(mm) |
| 2SK-0.4 | 0.4 | -0.097 | 2.2 | 2880 | 5-8 | 25 |
| 2SK-0.8 | 0.8 | -0.097 | 3 | 2880 | 10-15 | 25 |
| 2SK-1.5 | 1.5 | -0.097 | 4 | 1440 | 20-25 | 40 |
| 2SK-3 | 3 | -0.097 | 7.5 | 1440 | 30-40 | 40 |
| 2SK-6 | 6 | -0.098 | 15 | 1460 | 45-50 | 50 |
| 2SK-9 | 9 | -0.098 | 18.5 | 970 | 50-60 | 100 |
| 2SK-12 | 12 | -0.098 | 22 | 970 | 60-70 | 100 |
| 2SK-15 | 15 | -0.098 | 30 | 980 | 80-90 | 100 |
| 2SK-20 | 20 | -0.098 | 37 | 740 | 100-120 | 125 |
| 2SK-25 | 25 | -0.098 | 45 | 740 | 120-140 | 125 |
| 2SK-30 | 30 | -0.098 | 55 | 740 | 130-160 | 125 |
