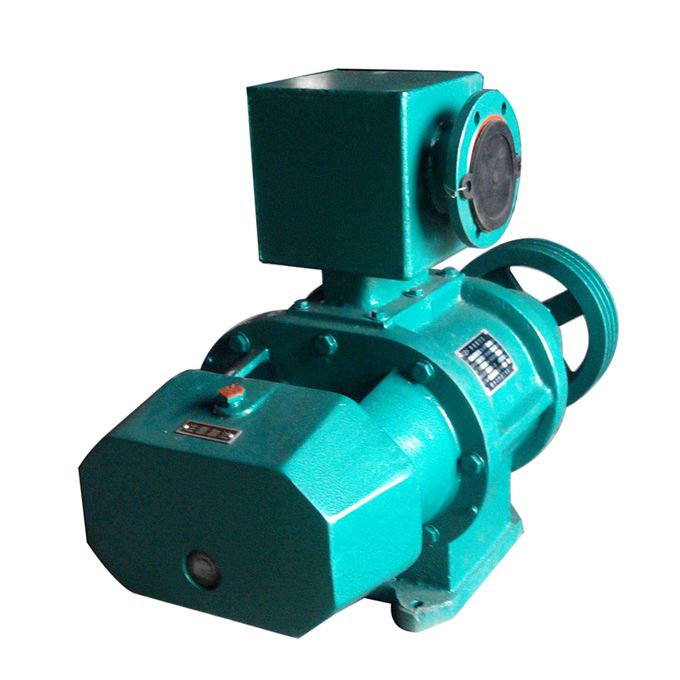

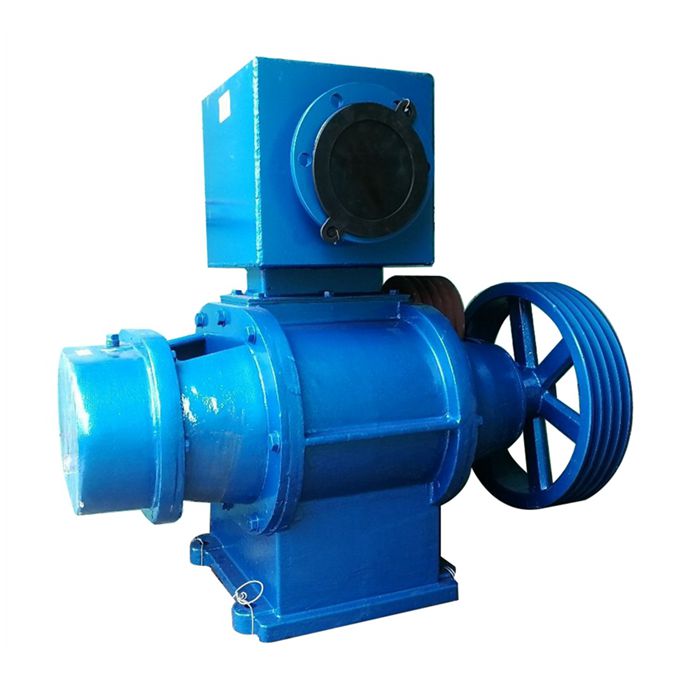

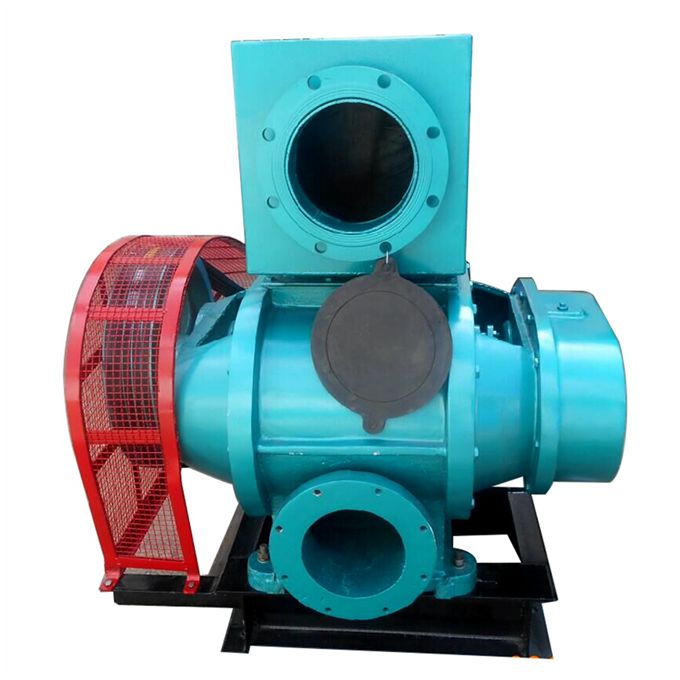

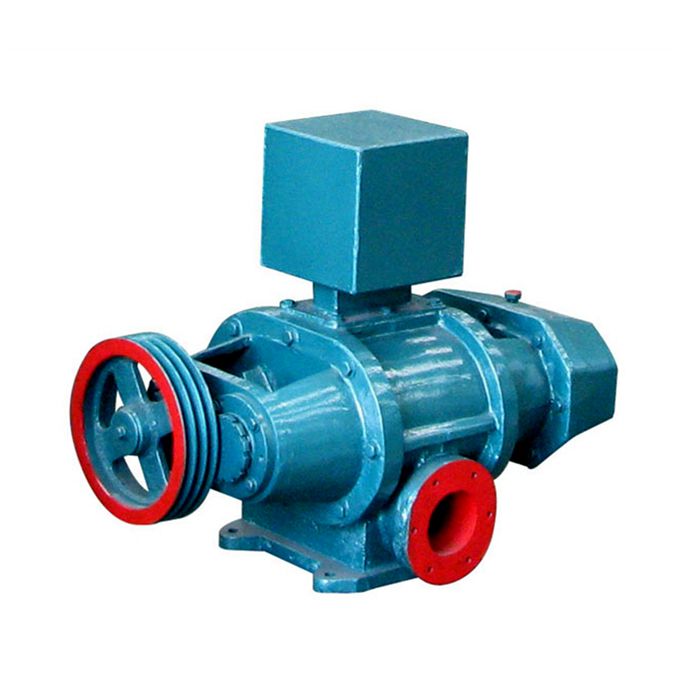

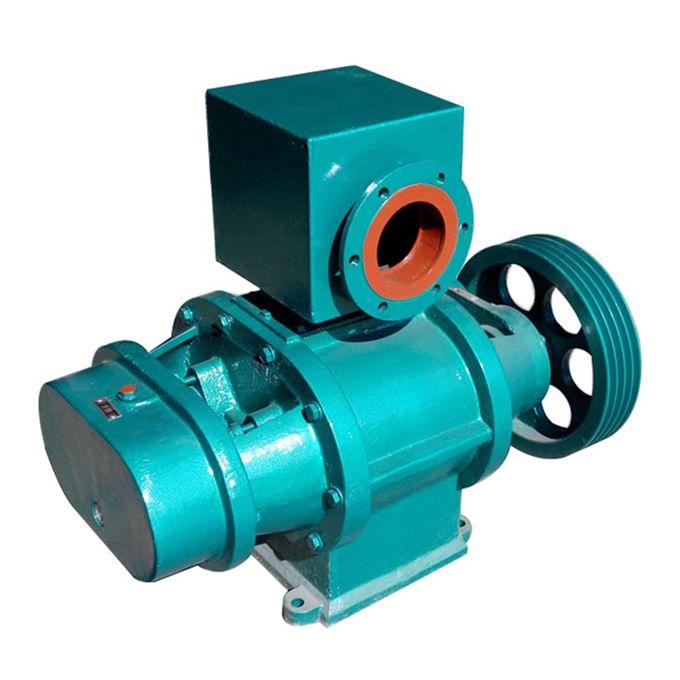

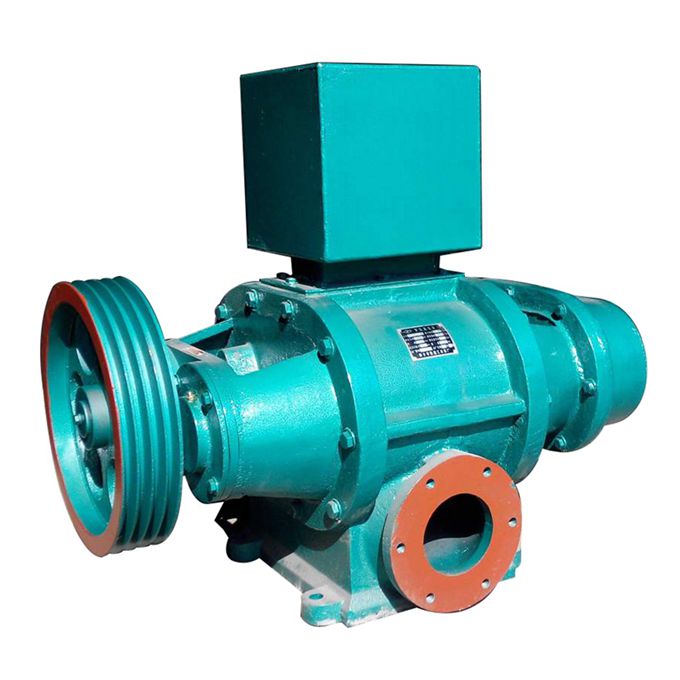

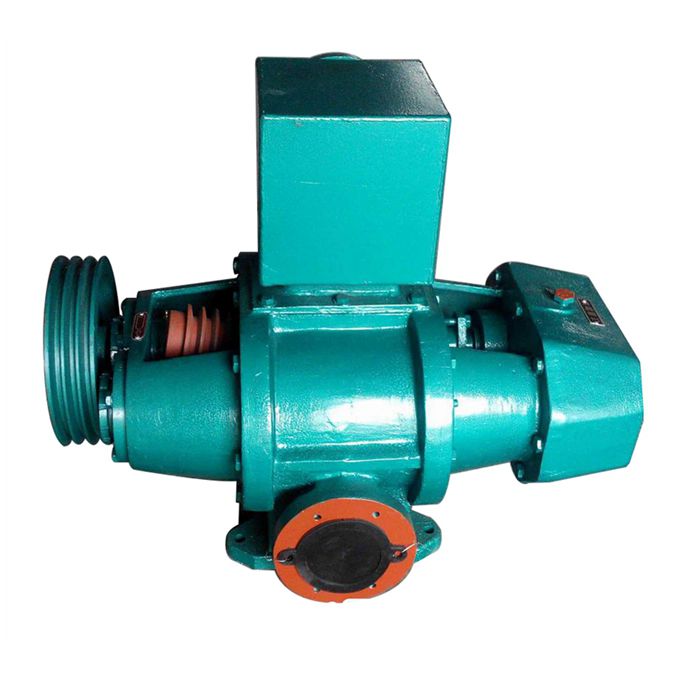

ZBK Series Roots Vacuum Pump For Paper Making
ZBK series two impellers roots vacuum pump is a kind of coarse vacuum equipment.Compared with water ring vacuum pump, it have advantage of high efficiency,compact size, light weight and low power consumption.
ZBK Series Roots Vacuum Pump For Paper Making
So widely used forpapermaking, food, chemical, clothing, sugar and other vacuum dehydration. The
transferring medium can be dry or wet air, air-water mixed gas without solid.Working Theory: Rotor appearance is like ‘8’, there is some space between two ‘8’ rotor. Motor drive the rotor by belt pulley, then rotor work together by synchromesh gear. There is a whistle box ,it can reduce noise, stabilized pressure, seal, improve
working efficiency.
| Basic Specification | Model Name | ||||||||
| Name | Unit | ZBK33 | ZBK13 | ZBK15 | ZBK16 | ZBK17 | ZBK18 | ||
| Max suction rate | m3/min | 3.8 | 6 | 10 | 15 | 30 | 60 | ||
| Rated suction rate | m3/min | 3.1 | 4.2 | 7.5 | 11 | 22 | 47 | ||
| Rated vacuum | Kpa | 33.3 | 33.3 | 40 | 40 | 45 | 47 | ||
| Rated speed | rmin | 500 | 400 | 450 | 400 | 400 | 550 | ||
| Inlet and outlet | mm | 85 | 125 | 150 | 200 | 250 | 300 | ||
| Power | KW | 4 | 7.5 | 15 | 22 | 45 | 90 | ||
| Weight | KG | 200 | 440 | 535 | 890 | 2100 | 3500 | ||
